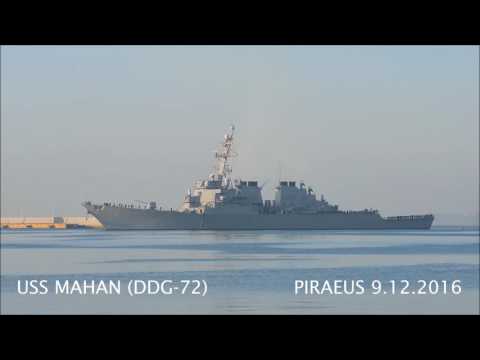

USS Mahan - DDG72

Name:	USS Mahan
Namesake:	Alfred Thayer Mahan
Ordered:	8 April 1992
Builder:	Bath Iron Works, Bath, Maine
Laid down:	17 August 1995
Launched:	29 June 1996
Acquired:	22 August 1997
Commissioned:	14 February 1998
Identification:	DDG-72
Motto:	Built to Fight
Status:	in active service
Badge:
General characteristics
Class and type:	Arleigh Burke-class destroyer
Displacement:	Light: approx. 6,805 tons Full: approx. 8,939 tons
Length:	505 ft (154 m)
Beam:	66 ft (20 m)
Draft:	31 ft (9.4 m)
Propulsion:	4 General Electric LM2500-30 gas turbines, two shafts, 100,000 total shaft horsepower (75 MW)
Speed:	>30 knots (56 km/h)
Range:	4,400 nautical miles at 20 knots (8,100 km at 37 km/h)
Complement:	33 commissioned officers 38 chief petty officers 210 enlisted personnel
Sensors and processing systems:	AN/SPY-1D 3D Radar AN/SPS-67(V)2 Surface Search Radar AN/SPS-73(V)12 Surface Search Radar AN/SPG-62 Fire Control Radar AN/SQS-53C Sonar Array AN/SQR-19 Tactical Towed Array Sonar AN/SQQ-28 LAMPS III Shipboard System
Electronic warfare & decoys:	AN/SLQ-32(V)2 Electronic Warfare System AN/SLQ-25 Nixie Torpedo Countermeasures MK 36 MOD 12 Decoy Launching System AN/SLQ-39 CHAFF Buoys
Armament:	1 × 29 cell, 1 × 61 cell Mk 41 vertical launch systems with 90 × RIM-67 SM-2, RIM-161 SM-3, BGM-109 Tomahawk or RUM-139 VL-ASROC missiles 2 x Mk 141 Harpoon Missile Launcher SSM 1 × Mark 45 5/54 in (127/54 mm) 2 × 25 mm chain gun 4 × .50 caliber (12.7 mm) guns 2 × 20 mm Phalanx CIWS 2 × Mk 32 triple torpedo tubes
Aircraft carried:	2 Sikorsky MH-60R helicopters can be embarked
